RADIANT The New Standard

Products

Full-electric endothermic radiant systems for painting and drying in car bodyshop and industrial sectors.

Discover the most powerful system on the market, engineered to optimize your company’s workflow.

Our radiant technology reduces consumption by 50%, accelerating drying cycles and enhancing the quality of the finished work.

THE MOST POWERFUL
REQUIRES THE LEAST ENERGY

Featured Installations

Interno futuristico di una cabina di verniciatura con pannelli radianti endotermici bianchi a parete e pannelli scuri a soffitto, con grigliato nero.
Confronto tecnico modelli Raytherm Radiant XL-8 e L-6 per cabine di verniciatura professionali.
Configurazione completa cabina Raytherm con pannelli Radiant XL-8, L-6 Performance e Super L-6 Ultra per essiccazione totale.
Configurazione Ultra di Raytherm: combinazione di pannelli Radiant XL-12 verticali e sistema a soffitto Super L-6 per essiccazione totale.
Interno cabina di verniciatura con configurazione Radiant XL-12 Performance, pannelli endotermici verticali e illuminazione LED.

    The performance of Radiant—in terms of both efficacy and efficiency—is made possible by the new patented FFI technology. Developed by a specialized team of engineers in thermomechanics and energy efficiency, it is currently the most advanced technology available on the market.

    It reduces installed power and energy consumption by 50% compared to similar legacy systems.

    Efficiency and efficacy,
    extraordinarily combined.

    Radiant reduces installed power and energy consumption by 50% while delivering superior performance.

    We have elevated efficacy and efficiency to unprecedented levels. Radiant is the revolutionary radiant endothermic system that optimizes every stage of the painting cycle and any production process requiring heat, making them more effective and efficient.

    The next generation of radiant endothermic panels.

    Icona pollice alzato con segno di spunta che simboleggia la qualità garantita e l'affidabilità dei sistemi Raytherm.

    We have addressed concrete needs with a new technology capable of making a real difference, by being significantly more efficient, effective, and sustainable.



    Conceived, designed, and built to meet concrete needs across various sectors, Radiant guarantees maximum efficiency, efficacy, and reliability even in complex and diverse environments. Thanks to its wide range of versions and power levels, it provides a precisely targeted response to highly specific and varied requirements.

    Our goal is to radically improve industrial thermal processes across multiple fields, with a specific focus on liquid coating drying, water evaporation, and other industrial heat treatments that require thermal energy.

    • Performance,
      Flexibility and
      Energy Efficiency

      A concentration of pure technological innovation, engineered for extreme flexibility.

      Vista frontale dell'interno di una cabina di verniciatura con pannelli radianti endotermici bianchi disposti simmetricamente sulle pareti.

      The system allows for independent adjustment of up to 4 radiant zones within the booth: left side, right side, rear, and ceiling. This enables intelligent and targeted use, optimizing consumption and avoiding waste of energy—and therefore, money.

      Thanks to this flexibility, the operator can choose between speed or economy, based on specific needs:

      Speed: For urgent jobs or peak workloads.

      Economy: When workflow schedules are less demanding.

      Example of a standard automotive application: If only two panels have been painted (e.g., a door and a fender), only the Radiant group for that specific zone can be activated. This ensures correct cross-linking (curing) with maximum cost savings.

      Alternatively, if greater speed is required, the ceiling Radiant group can be activated alongside the wall unit. This significantly boosts performance, allowing for perfect curing in much shorter timeframes.

      Surprisingly Comfortable Painting Environments

      Even with extremely low external temperatures, Radiant guarantees high standards of operator comfort. Its extraordinary radiant capacity makes the time spent inside the booth during the painting phase truly pleasant.

      Installazione a soffitto di pannelli radianti endotermici Raytherm per essiccazione industriale.
      Pannelli radianti endotermici installati all'interno di una cabina industriale per l'essiccazione della vernice.
      Una grande valvola industriale appesa a un paranco a catena in un'officina di verniciatura con pannelli radianti a parete.
      Pannello di controllo digitale Raytherm per la regolazione della temperatura in una cabina di verniciatura a pannelli radianti.
      Quadro elettrico principale Raytherm con pulsanti di comando e logo aziendale "Radiant. The new Standard".

        The heat emitted by the ceiling-mounted Radiant group (where installed) gently envelops the operator, replicating the pleasant sensation of a powerful sun warming a winter day in the mountains, even in the presence of cold air.

        The aerodynamic shape of the panels is specifically designed to prevent turbulence when the booth ventilation is active.

        More energy for your other operations
        – 50%
        of Nominal Installed
        Electrical Power*.

        *Compared to traditional endothermic panels.

        Until today, power consumption represented a significant limitation for endothermic/radiant technology.

        We have shattered this limit, allowing a growing number of companies across various sectors—such as automotive bodyshops, aerospace, heavy-duty vehicles, furniture, marine, and industrial coating—to benefit from the economic and productive advantages offered by Radiant. The power saved by Radiant can thus be redirected to power other machinery and equipment within your facility.

      • Unquestionable
        drying.
        Absolute.

        Compared to traditional endothermic systems and despite an incredible 50% reduction in installed power and consumption the results are nothing short of extraordinary, both in terms of drying quality and the significant reduction in processing times.

        Take, for example, the XL12 Performance system. Radiant’s performance is surprising even when drying more economical or difficult-to-cure coating products. With Radiant, these products can be used without issues, allowing for further savings on paint procurement.span>

        Even when using traditional, lower-cost coatings, the results remain excellent unlike old generation systems such as gas burners or legacy endothermic panels.

        Thanks to the superior radiation capacity of Radiant systems, the treated component rapidly reaches the required temperature, ensuring perfect and fast cross-linking (curing) regardless of the product used.

        A Smart Choice.
        Without Compromise.

        Choosing Radiant means refusing to compromise and demanding the best in cost reduction, production speed, and simultaneously the highest quality of the finished work.

        Consumption is reduced by 50% compared to traditional panels. Our patented innovations drastically cut processing costs through extraordinarily lower energy intake, combined with significantly higher yield and performance.

        Useful Innovation, provable because it’s measurable.


        TO VERIFY THE EXTRAORDINARY CAPABILITIES OF RADIANT, ALL YOU NEED ARE…

        3

        SIMPLE
        TOOLS

        AVAILABLE TO EVERYONE:

        A CLAMP
        METER

        to verify the actual power absorption

        A PYROMETER

        to measure the temperature
        reached on the workpiece

        A TIMER

        to check how quickly
        the workpiece reaches the target temperature

        RADIANT. FACTS, NOT WORDS.

      • Versions

        Radiant is built on a modular platform available in two sizes:

        Radiant L (1200×300 mm) and Radiant XL (1200×600 mm).

        In both cases, multiple power levels are available to ensure maximum versatility, allowing you to configure and scale the ideal system for every specific production requirement. Depending on your needs, Radiant panels can be installed in vertical, horizontal, or ceiling positions, or on specialized 20° inclined brackets.



        The power levels for Radiant panels are as follows:

        RADIANT L

        Radiant L Performance – Installed Power: 0.69 kW
        Radiant L Ultra – Installed Power: 1,03 kW

        RADIANT XL

        Radiant XL – Installed Power: 1,03 kW
        Radiant XL Performance – Installed Power: 1,38 kW
        Radiant XL Ultra – Installed Power: 2,07 kW

        Tabella tecnica pannelli radianti Raytherm modelli Radiant L e XL con specifiche di potenza e dimensioni.

      • Control Systems

        A smart choice.
        Two control systems.
        And more.

        In addition to being compatible with custom-engineered management systems designed to meet specific requirements, our installations are generally supplied with two primary control options:

        Easy control

        Easy Control is an electromechanical system equipped with several automated functions. It manages up to three zones of the spray booth (left, right, and rear/ceiling) through three thermoregulators, allowing the temperature of each zone to be adjusted independently.
        The system features two primary modes:
        Painting mode
        Flashing/Drying mode
        Temperature set-points can be independently adjusted and easily modified to meet the specific needs of each zone. Additionally, for the flashing/drying phase, a timer is included to automatically turn off the panels once the set time has elapsed.

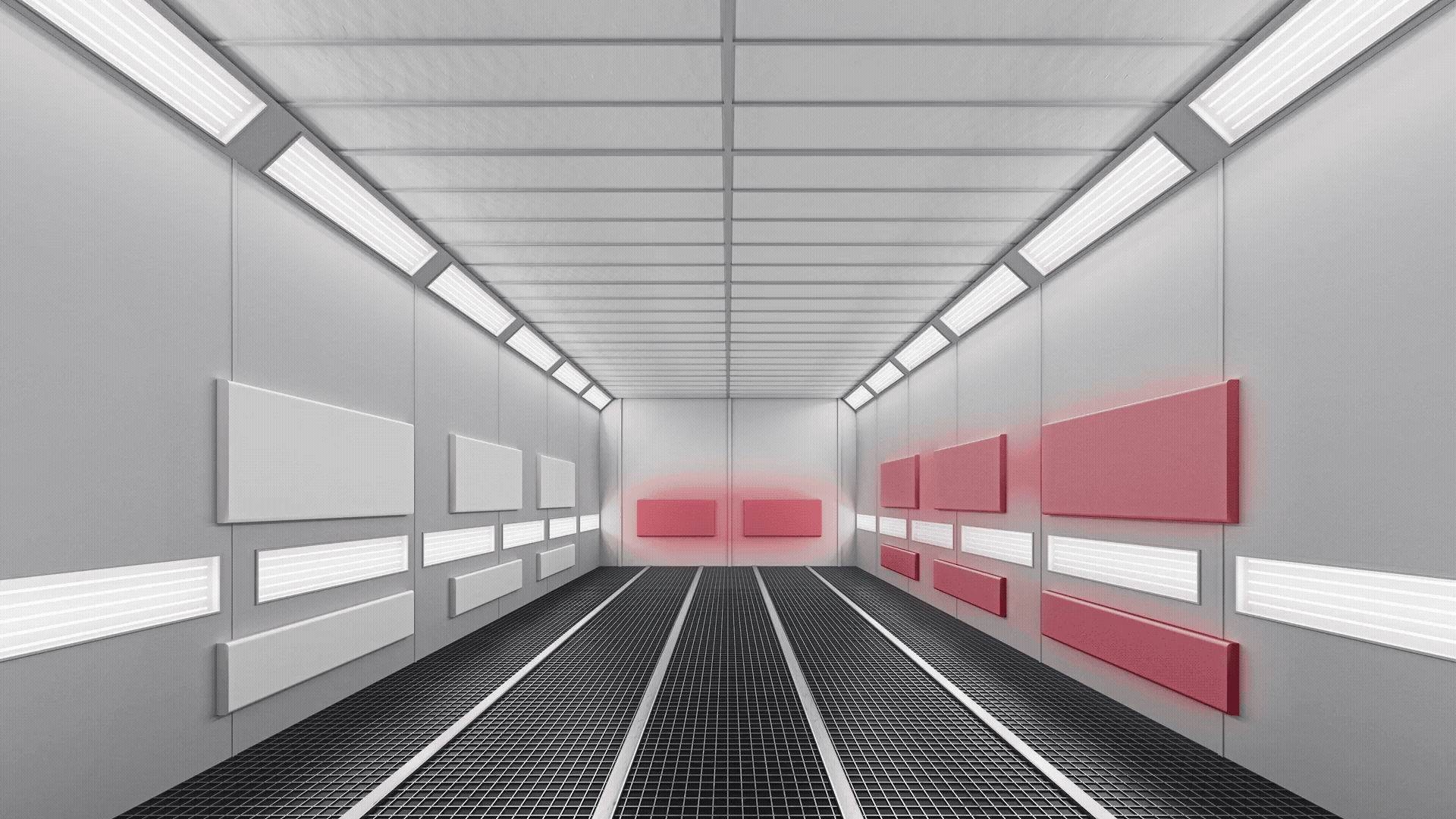

        Easy Control includes the Ecomatic function, which intermittently activates and deactivates the various zones to reduce power absorption peaks—particularly during the painting phase—and to limit consumption whenever required.

        Smart control

        Smart Control is Raytherm’s advanced electronic management system, featuring a PLC and a latest-generation 10” touchscreen. In addition to all the functions found in Easy Control, Smart Control allows for independent temperature regulation of all four zones of the spray booth (right, left, rear, and ceiling).

        It monitors real-time consumption and provides access to statistical data from previous jobs saved in the system. All functions are easily managed, including via remote access.

        Air Matic allows you to activate the spray booth’s intake and exhaust motors simply by using the spray gun. After a pre-set interval (typically 120 seconds) from the end of the spraying process—providing sufficient time to exhaust residual paint fumes—the booth motors will shut down automatically.

        The main advantages of Air Matic include:

        Optimized Motor Usage: Intake and exhaust motors run only for the strictly necessary time, eliminating energy waste.

        Heat Retention: It prevents the heat produced by the Radiant system from being expelled unnecessarily by keeping the motors running longer than needed.

        Filter Longevity: It minimizes the wear and consumption of the booth’s activated carbon filters (where present).

        When activated, this function provides intermittent power to the various zones of the booth. Eco Matic reduces energy consumption while maintaining uniform heat radiation across all sides of the booth. It is particularly useful when available power is limited and cannot simultaneously support both the booth motors (intake and exhaust) and the Radiant system.

        Synergy with Air Matic: When combined with the Air Matic system and set to Auto mode, the system activates automatically as soon as it detects spray gun use. In this way, when the booth motors start, the Eco Matic function is triggered simultaneously, preventing accidental power spikes caused by the combined draw of the motors and the Radiant system.

      • Integration

        Thanks to their high level of digitalization and significant reduction in consumption compared to competing systems, Radiant systems are Industry 4.0 and 5.0 READY.
        Designed to be connected and integrated into the entire workflow, Radiant systems represent an advanced, future-proof solution. In the Smart Control version—featuring comprehensive and highly innovative software—Radiant may qualify for significant tax incentives (subject to local conditions and the fulfillment of specific requirements).

        The system allows for real-time monitoring of all operations, such as:
        Which and how many panels were activated;
        The specific operating modes utilized;
        Detailed data for every single operation.

        EFFICIENT,
        CONNECTED WITHIN
        THE PAINTING CYCLE
        FOR NUMEROUS BENEFITS,
        NOT JUST ECONOMIC ONES.

        MISSION ACCOMPLISHED
        BUILT FOR
        THE LONG HAUL

        Designed and engineered to push performance and efficiency to the limit.

        Nothing is left to chance in a Radiant system—from its overall shape down to the smallest component. Every detail has been designed, manufactured, or selected with a single goal: to revolutionize endothermic technology and create the most effective and efficient system ever made. The numbers confirm that we have achieved this milestone.

        Built for high-intensity operation.

        Energy consumption is reduced by 50% compared to traditional panels. Our patented innovations drastically cut processing costs thanks to extraordinarily lower energy intake, combined with significantly higher yield and performance.

        Rapid Delivery.
        Structured warehouse and
        a premium network of installers.

        Our logistics system is designed to guarantee rapid delivery of Raytherm products, often within just a few hours*. Furthermore, we collaborate with the best installers, carefully selected from the most qualified professionals in the industry.

        *Subject to actual stock availability.
